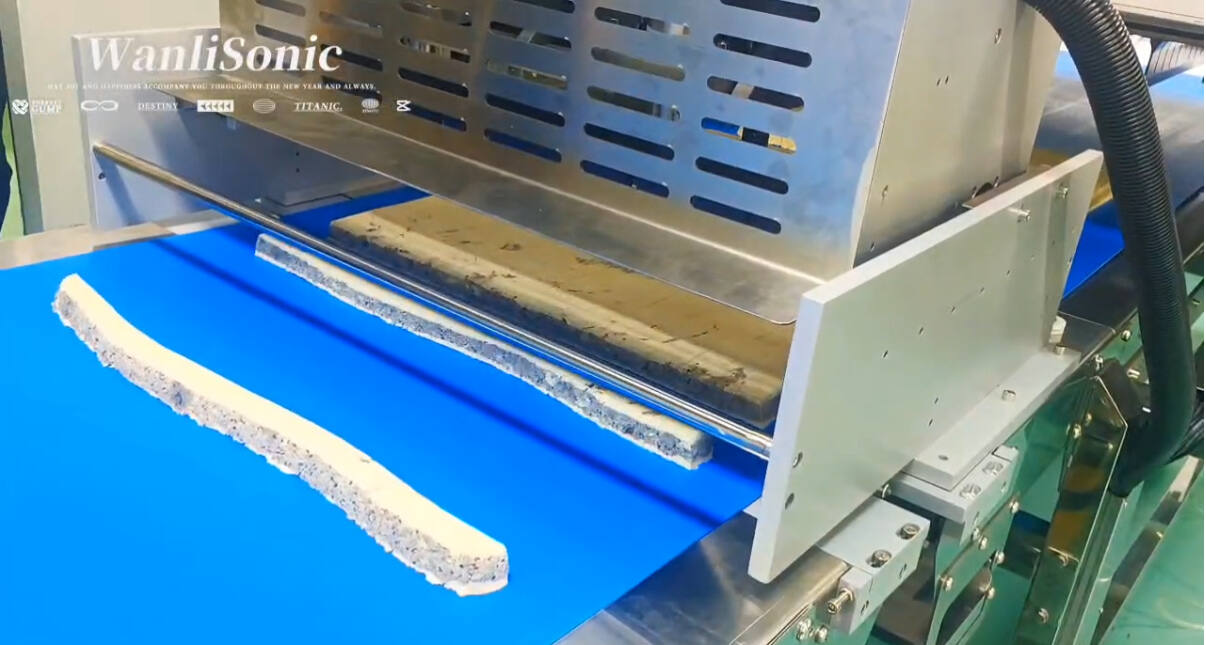

Wanlisp4-300K900L3500 Wanli Machinery Ultrasonic Pastry Cutting Machine is an innovative solution designed for precise and efficient slicing of bakery products. Using advanced ultrasonic vibration technology, the machine ensures clean, smooth, and uniform cuts for cakes, pies, tarts, and other pastries without deforming delicate textures. Its high-frequency blade reduces residue buildup and guarantees impeccable presentation, making it ideal for businesses focused on quality and productivity. With an intuitive control panel and customizable cutting options, it adapts easily to various product sizes and shapes. Built with durable stainless steel, the machine meets food safety standards and is easy to clean and maintain, ensuring long-lasting performance. Perfect for bakeries of all sizes, the Wanli Ultrasonic Pastry Cutting Machine combines precision, efficiency, and reliability to elevate your baking operations.
★Average speed: 30-40 cuts per minute
★Touch screen with user-friendly interface
★Reliable and durable ultrasonic blade
★Increased quality and labor saving enhance capacity
★Improved portion quality and consistency
Product Details Display
|
 |

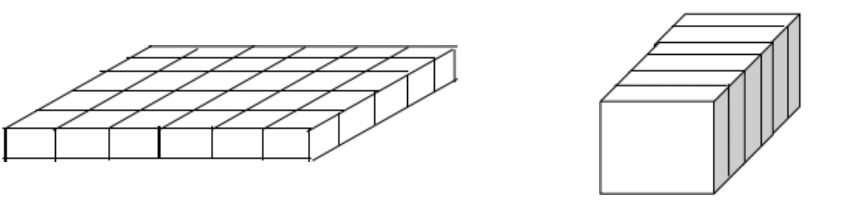

| Cutting Mode & Cutting Example |

|

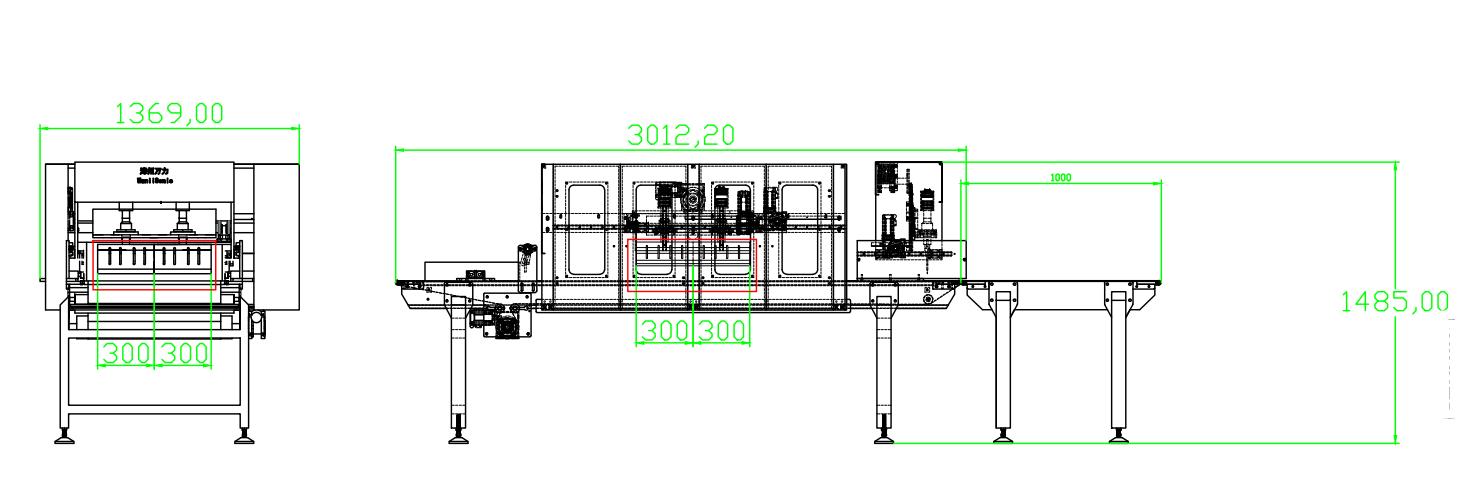

| Features | Machine Dimensions (L xWxH) |
Fully Stainless steel construction & food grade plastics |
 |
Product Description
Model |
Wanlisp4-300K900L3500 |
Dimensions |
L3000*W1400*H1550mm |
Weight |
Net Wt. 550KGS, Gross Wt.600KGS |
Voltage |
220V, single |
Rated power |
8000W |
Frequency |
50Hz-60Hz |
Ultrasonic Frequency |
20000Hz |
Amplitude |
20%-40% |
Cross cutting speed |
20-60cuts/Minute; high-speed model:60-180cuts/Minute |
Slit cutting speed |
30-40cuts/Minute; high-speed model:40-100cuts/Minute |
Number of blades |
4 (optional) |
Blade materials |
Titanium Alloy |
Blade size |
300mm/pc (optional) |
Cut type |
Square, rectangular, slices |
Components
No. |
Name of Component |
Brand |
Introduction |
Picture |
1 |
Ultrasonic Blade |
Wanlisonic |
Made of Titanium Alloy material, The mechanical strength is better than that of steel, the acoustic transmission is good, the sound frequency is not depleted in its internal transmission, and it has strong acid-base corrosion ability, |
|
|
2
|
Ultrasonic Generator
|
Wanlisonic |
The advantages of original ultrasonic generator include automatic frequency lock function, automatic frequency tracking,low coefficient of temperature change, and there will be 7*24 hours of aging test before delivery.
|
|
3 |
Thicken and Bigger Cutting Machine Framework |
Wanlisonic |
Stainless steel, easy to clean, made with thicken china standard material, made by Anshan Iron and Steel Company |
|
4 |
Energy Transducer |
Wanlisonic |
Electric energy is converted to kinetic energy, to make the blade cut the products |
|
5 |
Touch Screen |
Wecon/Delta |
Intelligence control, for the operation and monitor |
|
6 |
PLC Control System |
Wecon/Delta |
Anti-error operation, safety testing, alarm indication |
|
7 |
Reley |
OMRON |
Touch switch |
|
8 |
Sensor |
Leuze |
For Testing whether have the products under the blade |
|
9 |
Frequency Inverter |
SANJING or Delta |
Driving the conveyor to work |
|
10 |
Servo Motor |
Dorna |
Driving the blade to work |
|
11 |
Stepmotor |
Dorna |
Driving the blade to work |
|
